EXPANDED STEEL WALKWAY GRATING

Heavy duty expanded steel grating for walkways and flooring.

EXPANDED STEEL WALKWAY GRATING

Heavy duty expanded steel grating for walkways and flooring.

FEATURES:

  • 3lbs/ft2 [14.65kg/m2]

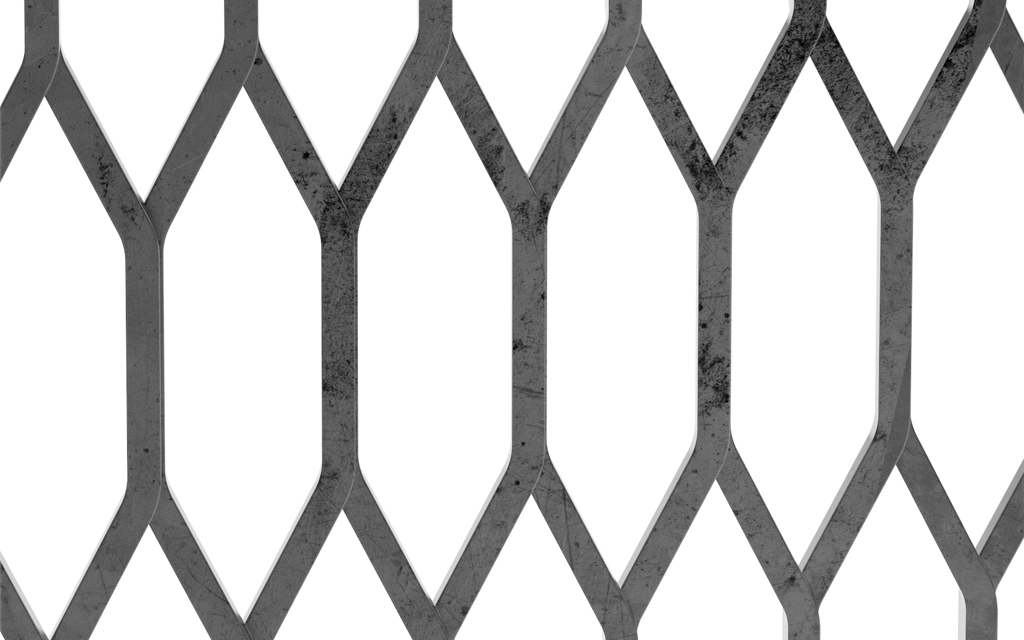

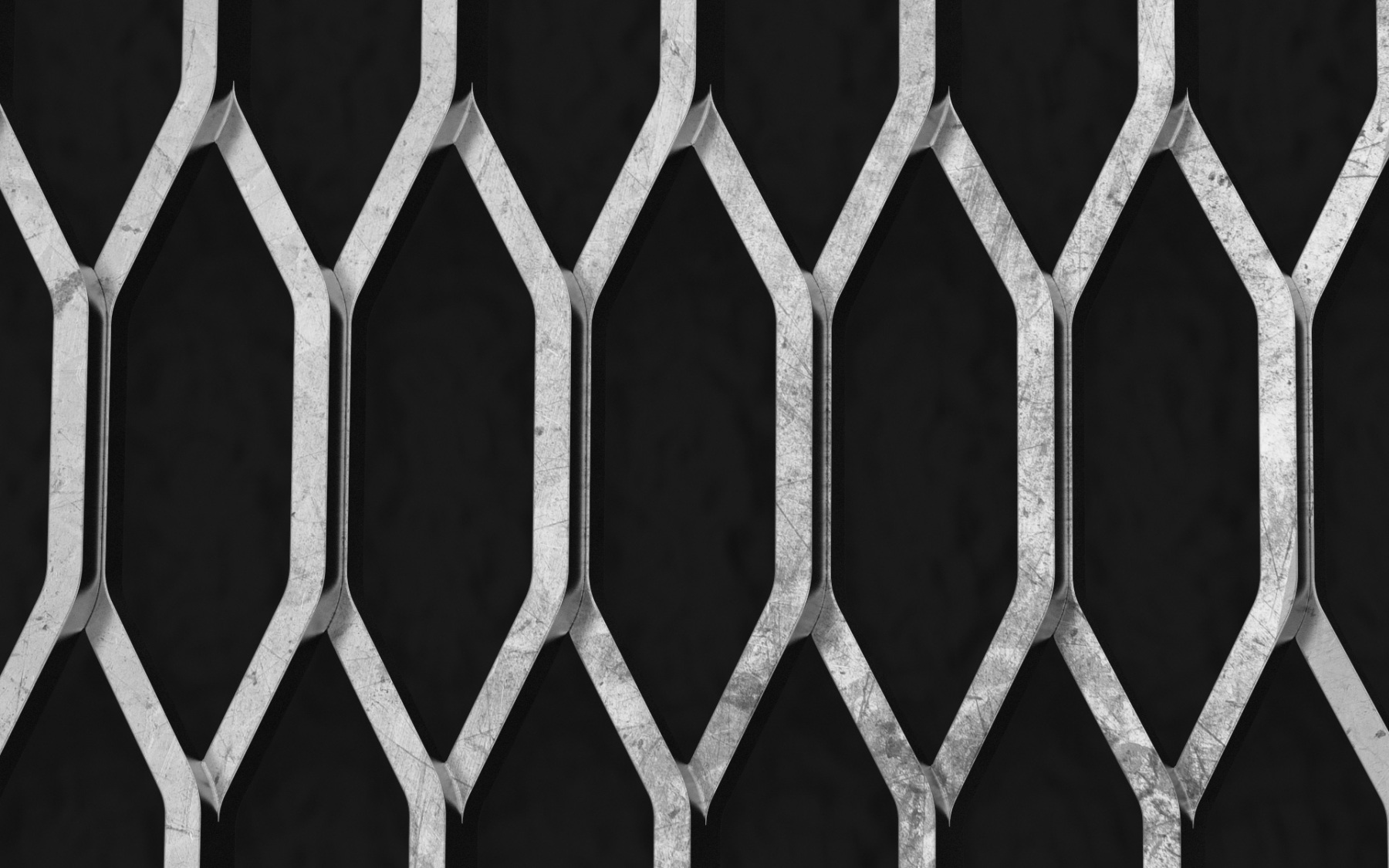

  • Hexagonal grating pattern, de-burred
  • Base steel thickness 0.209” minimum [5.3mm]
  • Carbon steel

Features a hexagonal grating pattern, de-burred.

Steel grating has a base steel thickness 0.209” minimum [5.3mm].

TECHNICAL DATA:

Expanded steel walkway load table:

  • For 3# grating only
  • Clear span is measured from the inside edge of one support to the inside edge of the next support.
  • Deflection values greater than 0.25” are not recommended for normal pedestrian comfort but may be safely exceeded at the discretion of the application engineer.

DEFLECTION [INCHES]

Load Type CLEAR SPAN 50 LBS 100 LBS 150 LBS 200 LBS 250 LBS
Concentrated 24" 0.068 0.132 0.197 0.263 0.329
36" 0.192 0.380 0.570 - -
Uniform 24" 0.073 0.146 0.220 0.293 0.366
36" 0.330 0.660 - - -
  • Concentrated load – lbs per square foot of width at mid span
  • Uniform load – lbs per square foot

GALLERY:

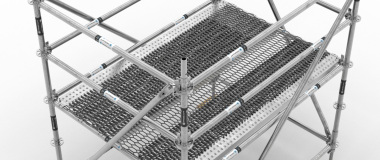

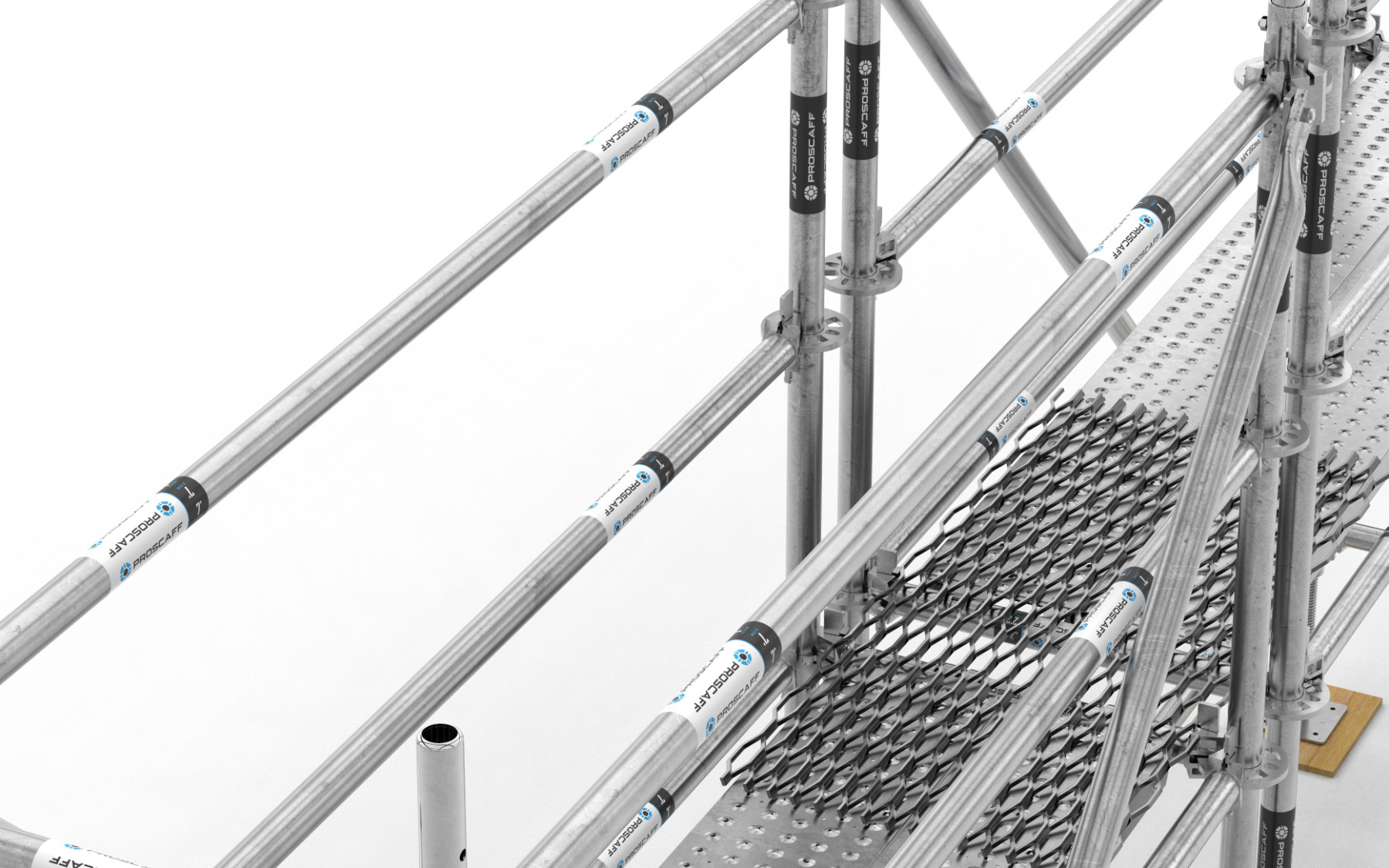

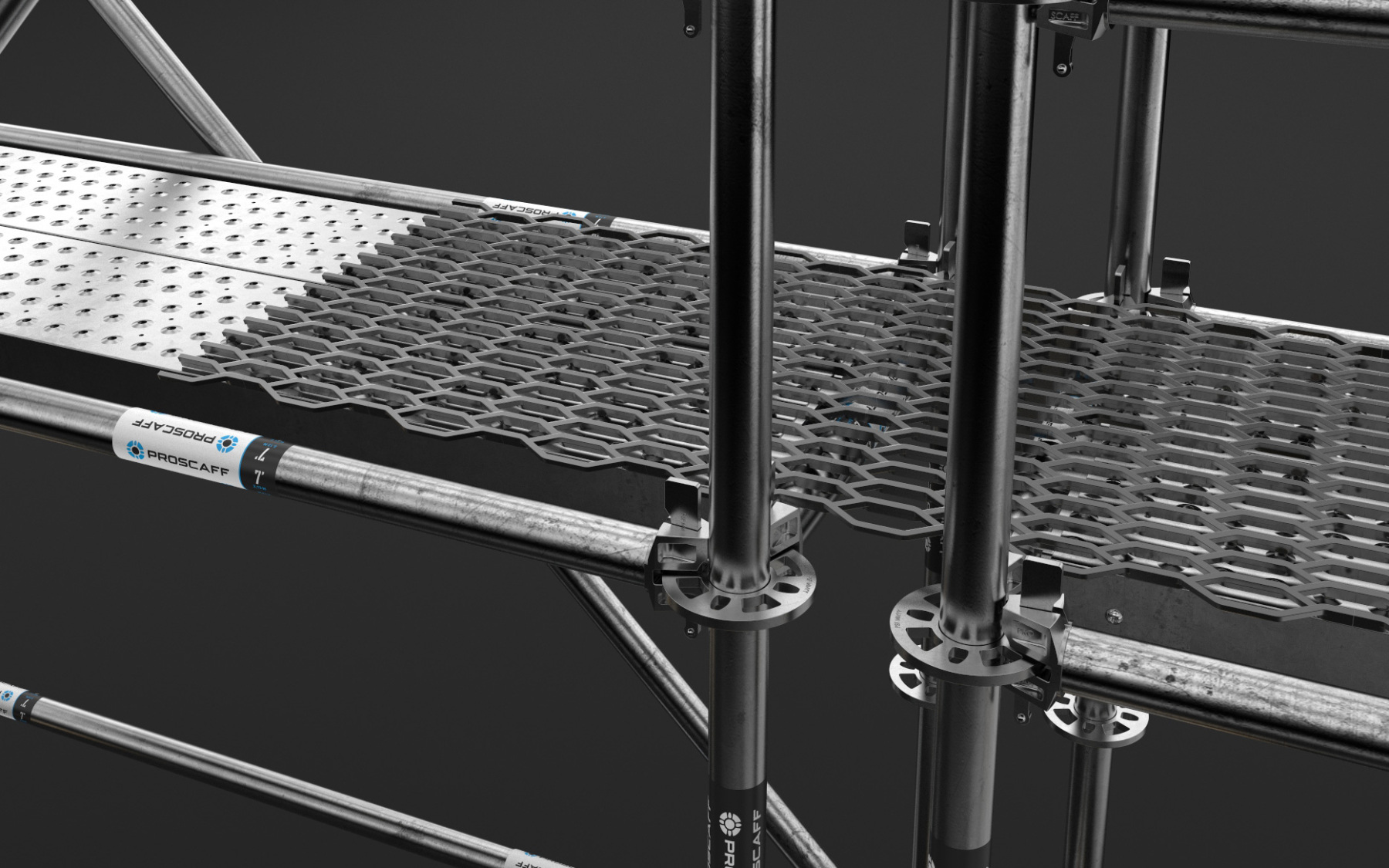

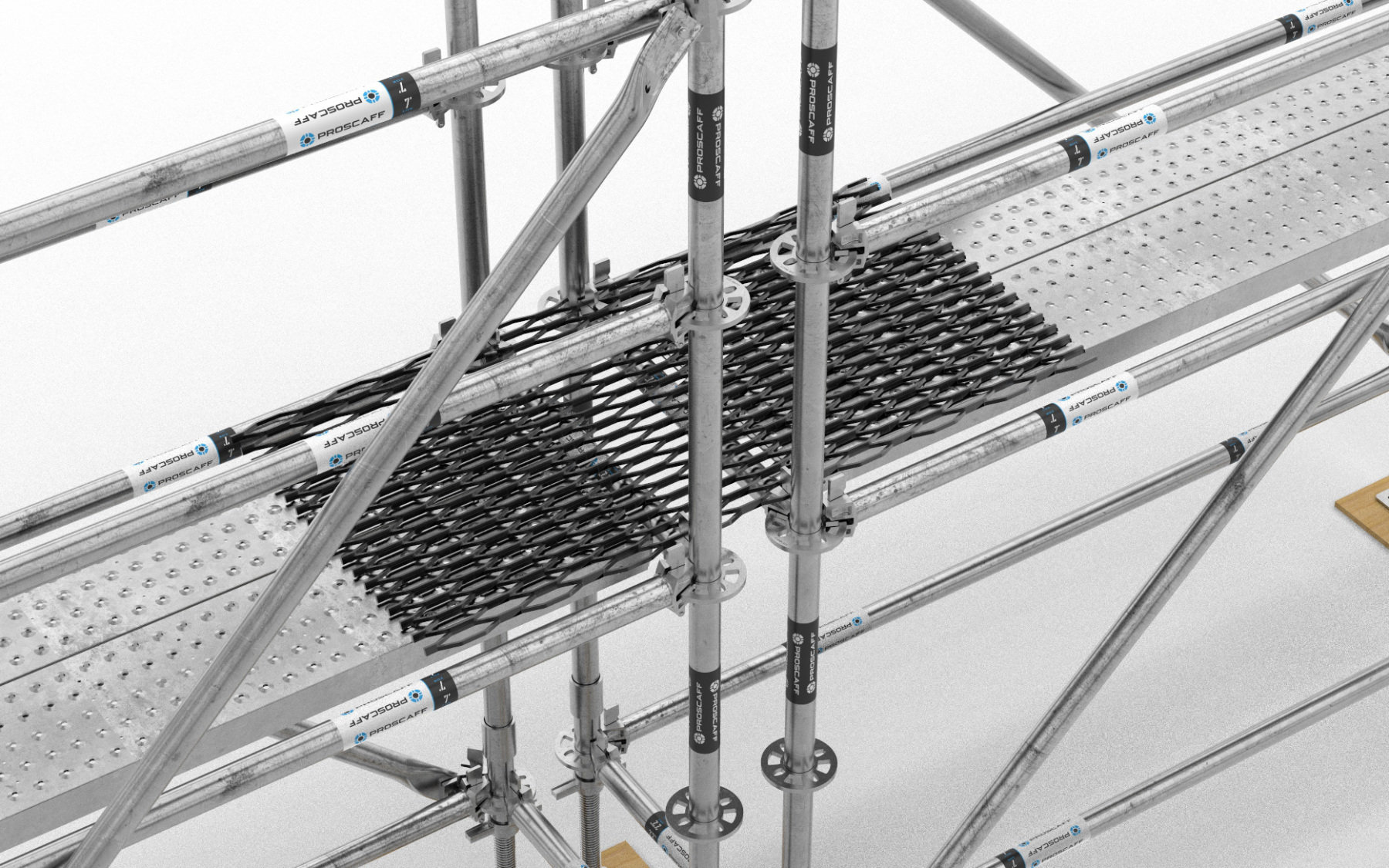

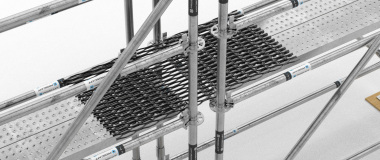

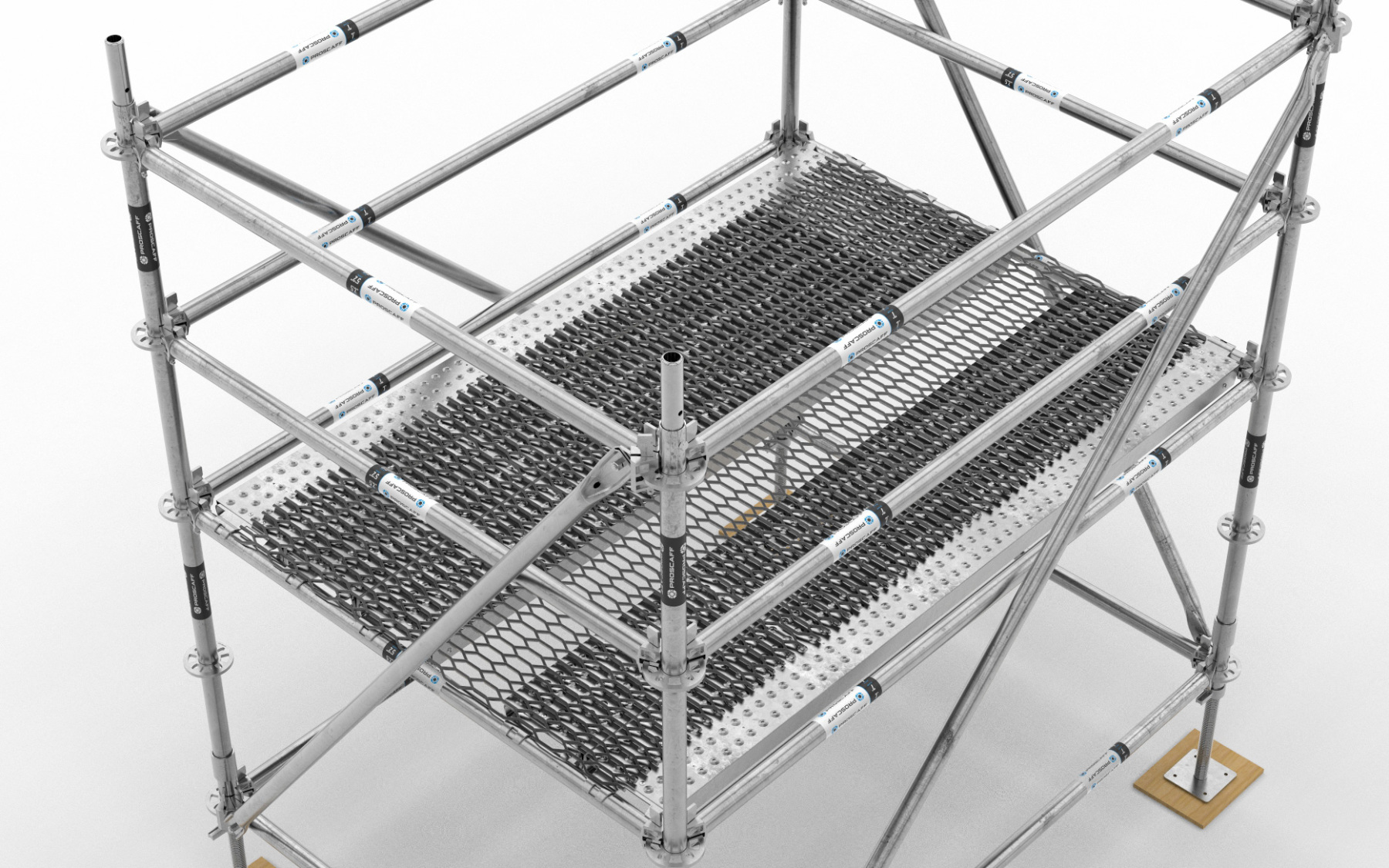

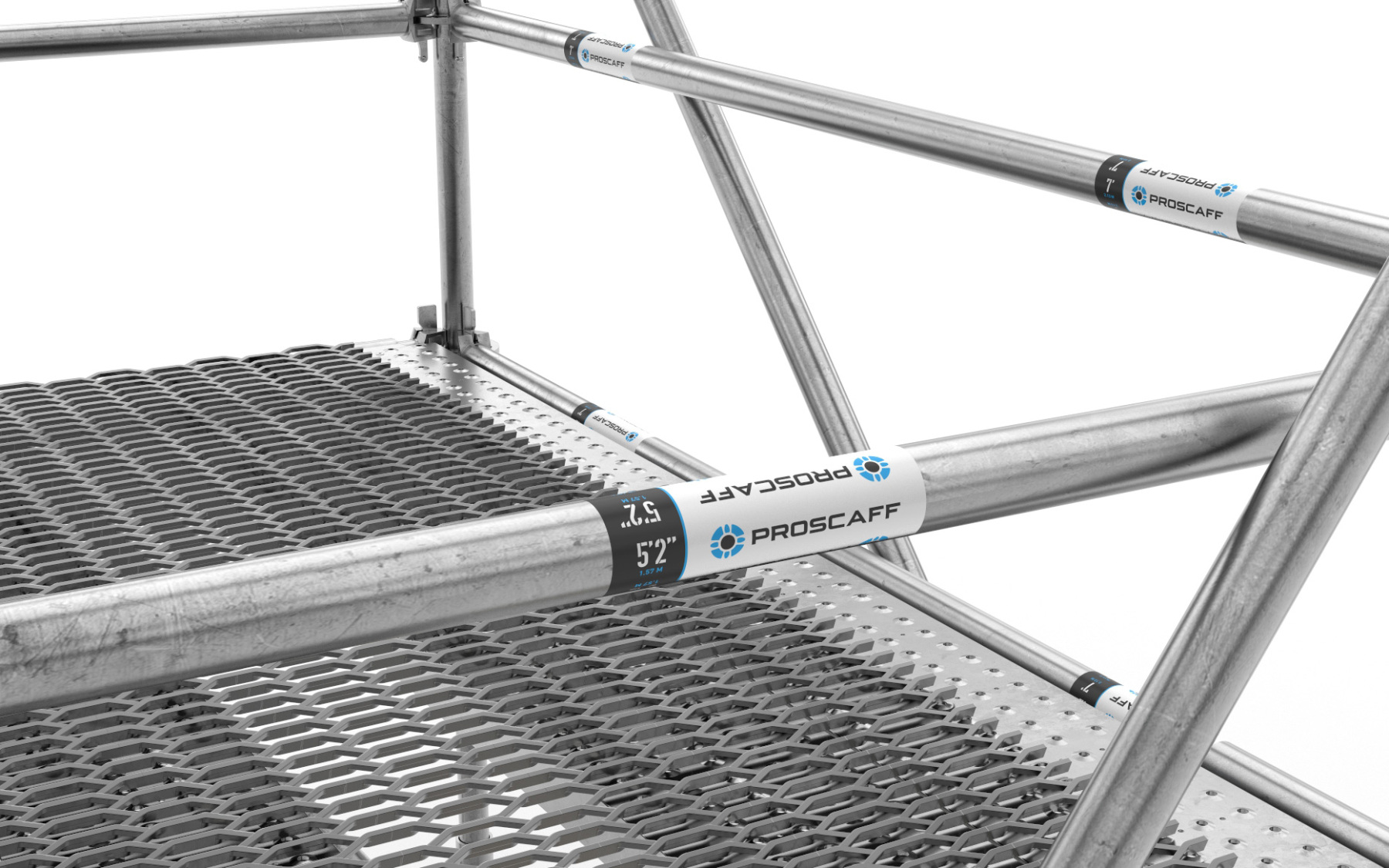

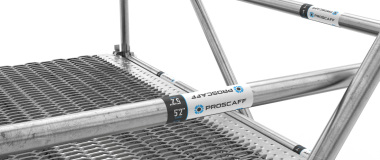

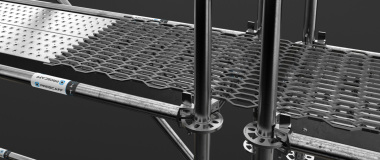

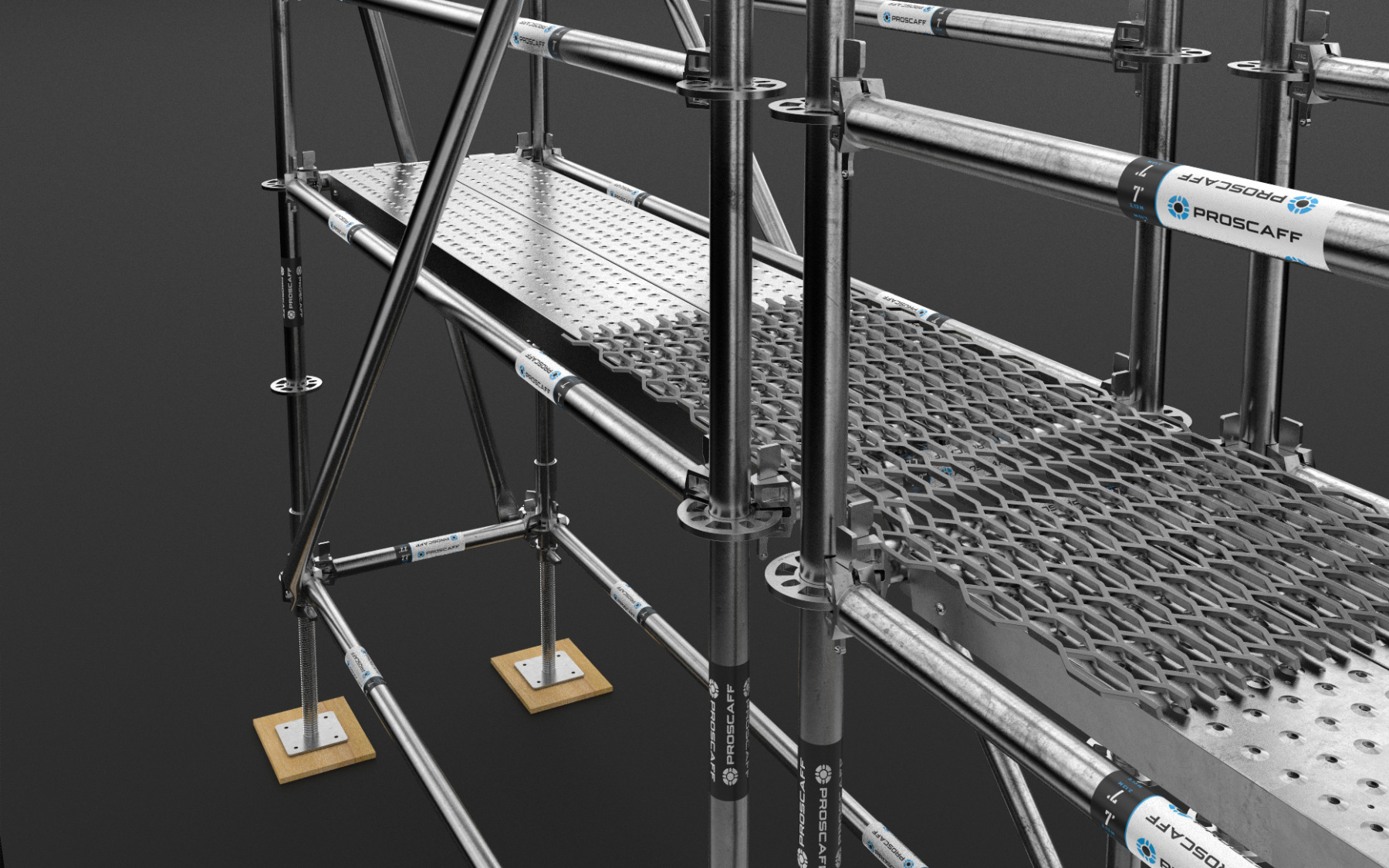

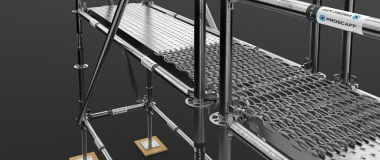

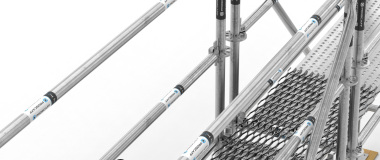

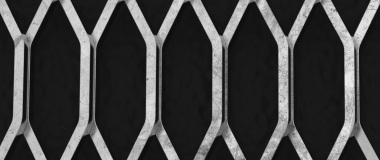

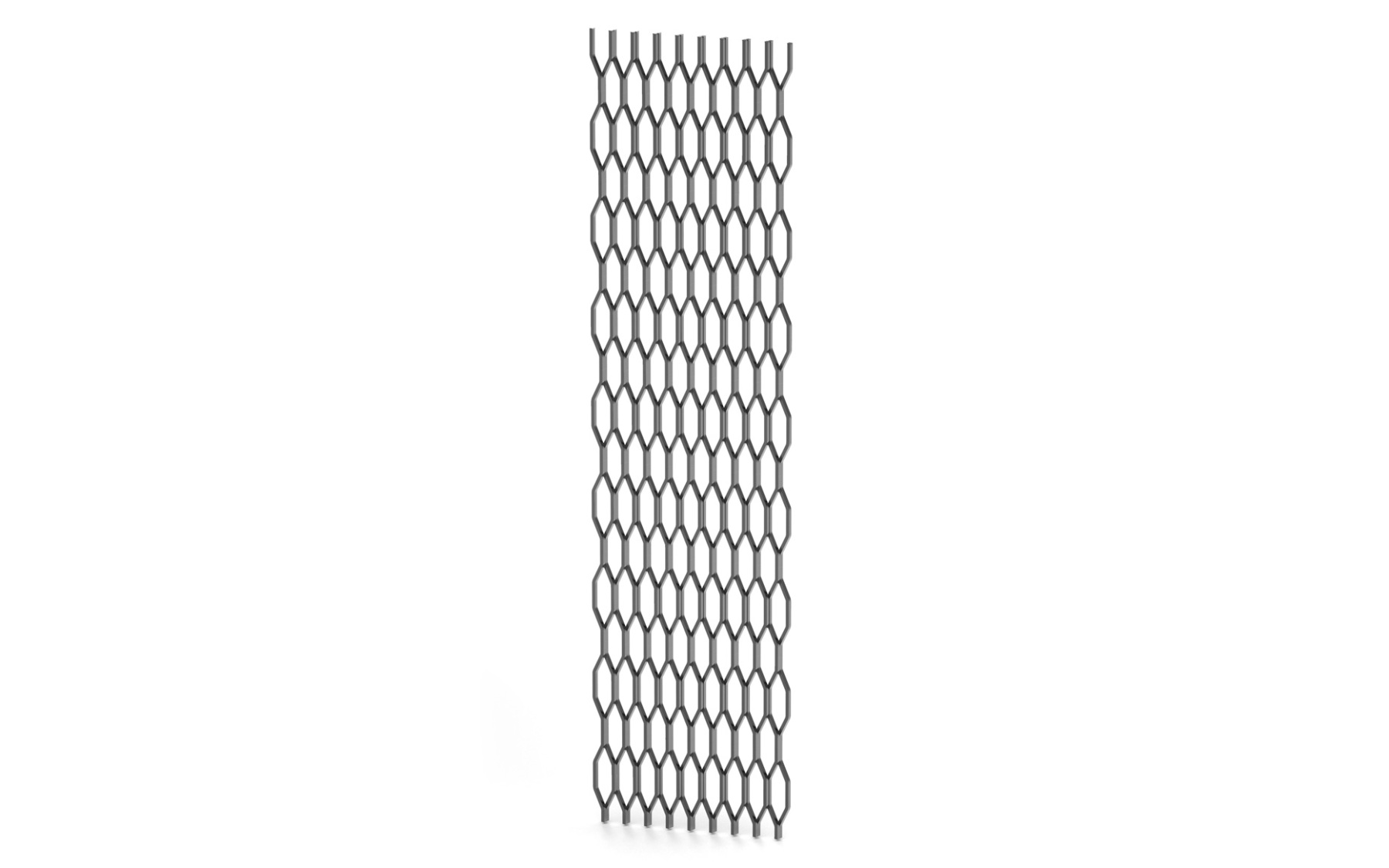

Proscaff_Product-Page_Gallery_Steel-Grating-08
